Ferrue nappe voute
Project Information:
Country: Côte d'Ivoire
Time: 2023.03 to Now
Project Introduction：
The power systems and transmission projects in French African countries are mostly constructed using French standards. For new transmission projects, them also prefer French standard designs. My factory is familiar with French standards and the construction of power metal components, and has customized the production of power steel structural components for French African countries multiple times.
Keyword:
Bras incline a simple amarrage
BISA de 70*320
BIS 70-80
Ferrure nappe voute
NV1
NV2
Ferrure nappe Voute d'ancrage 140-80
Ferrure nappe voute d'ancrage
Ferrure nappe voute rigide
Ferrure support orientable
Ferrure support parafoudre
Herse d'ancrage 1100mm
Herse d'ancrage 1500mm
Offset Pole Bracket
Ferrure de tete pour poteaux en bois
french standard cross arm
Traverse d'ancrage simple H61
TAS
TAD
Detail Supply Information
SUPPLY INFORMATION:
● Technique Request:
1. All Material request Yeild strength more than 250Mpa; Tensile Strength 370-500Mpa;
2. All Length request Tolerance:+/-5mm; Diameter holes :+/-0.5mm;
3. All items using one whole pcs material , not accepted welding raw material using;
● Surface Request:
1.All item to doing processing, after that to galvanized;
2. All items using hot dip galvanized as ASTM A123/A153 standard;
● Surface Items:
| Items | Drawings | Quantity |
|---|---|---|
| Bras incline a simple amarrage BISA de 70*320 |  | 2850 |
| Ferrure nappe voute d'alignement Type 140-75 |  | 778 |
| Ferrure Nappe Voute d'alignement Type 170-75 en fer corniere de 70x70(NV2) |  | 365 |
| Ferrure nappe Voute d'ancrage 140-80 | 452 | |
| Ferrure nappe voute d'ancrage 170-75 | 65 | |
| Ferrure nappe voute rigide NVR1,conforme a la norme GTE B 23.111.10 |  | 1240 |
| Ferrure nappe voute rigide |  | 2840 |
| Ferrure support orientable |  | 48 |
| Ferrure support parafoudre |  | 2222 |
| Herse d'ancrage 1100mm |  | 685 |
| Herse d'ancrage 1500mm |  | 1260 |
| Ferrure portique d'ancrage de |  | 4200 |

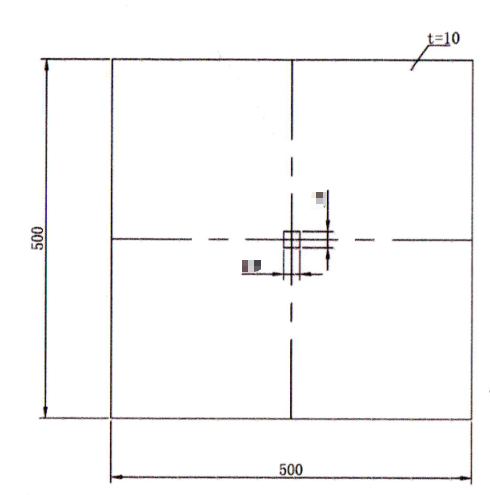

| Stay plate 500 |  | 23658 |
| Offset Pole Bracket |  | 2396 |
| Ferrure de tete pour poteaux en bois |  | 5968 |

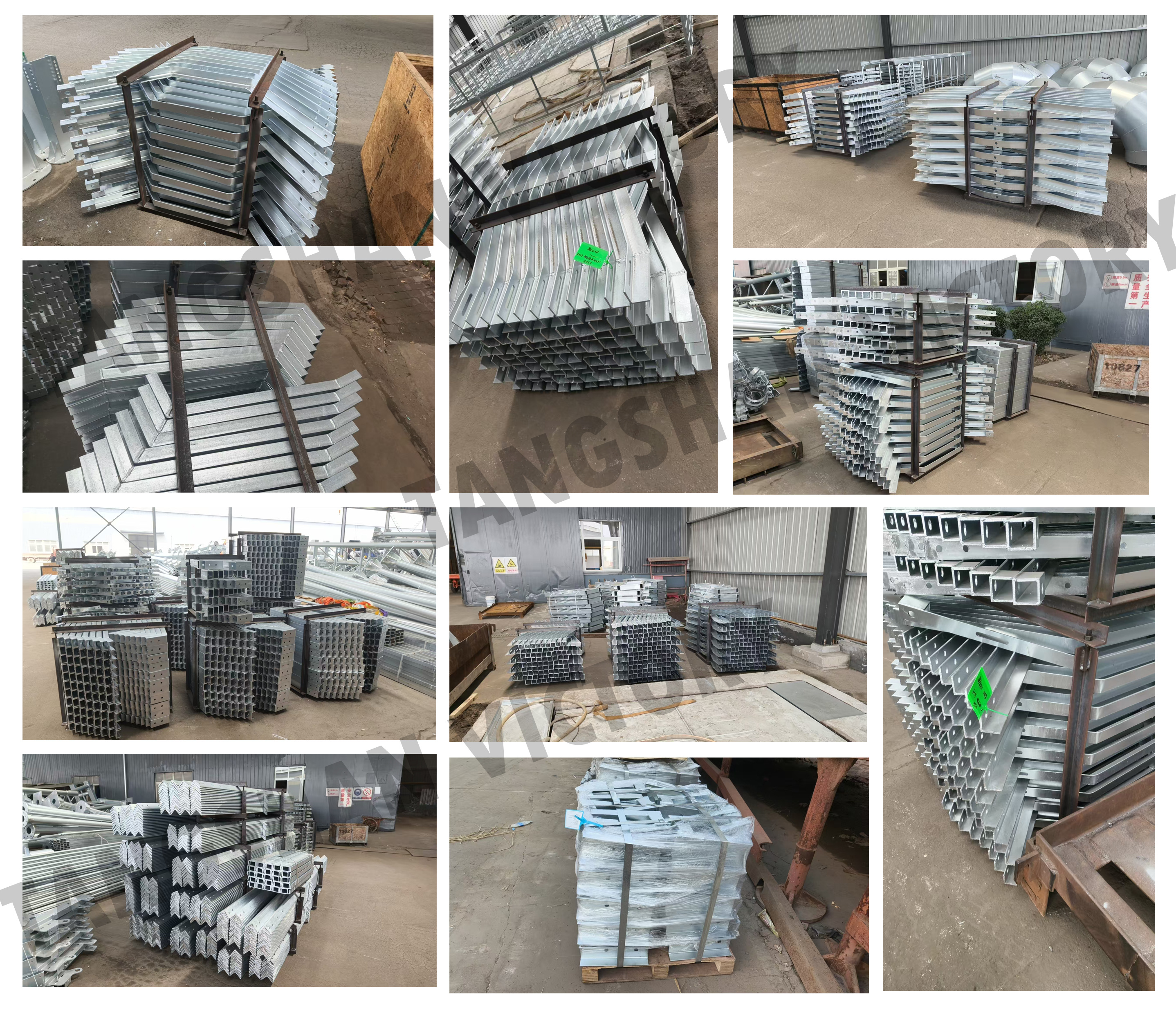

CARGOS PRODUCE:
