MOZAMBIQUE / Pole Metal Fitting
Project Information:
Country: Mozambique
Time: 2022.06 to Now
Project Introduction：
The power cross arm project is a government transmission project, which is publicly tendered by the government power company. The client is a local strong supplier. After winning the bid, they provide our company with drawings and technical requirements information. Our factory customizes production and supply according to the client's requirements.
Keyword:
Hardware fitting
Pole Metal fitting
Galvanized cross arm
Steel crossarm
electric power fitting
customized power crossarm
Detail Supply Information
SUPPLY INFORMATION:
● Technique Request:
1. All Material request Yeild strength more than 250Mpa; Tensile Strength 370-500Mpa;
2. All Length request Tolerance:+/-5mm; Diameter holes :+/-0.5mm;
3. All items using one whole pcs material , not accepted welding raw material using;
● Surface Request:
1.All item to doing processing, after that to galvanized;
2. All items using hot dip galvanized as ASTM A123/A153 standard;
● Supply Items:
| ITEM | SIZE(mm) | Length(mm) | QTY(PCS) |
|---|---|---|---|
| Suspension Cross arm | 80x43x5.0x8.0 | 2500 | 1748 |
| Heavy Angle Crossarm | 100x50x6x8.5 | 3000 | 2374 |
| Big Collar 800Dan | 400 | bolt | 2256 |
| Tie Strap Crossarm A Type | 80x8 | 900 | 4496 |
| Tie Strap Crossarm B Type | 80x10 | 1040 | 4496 |
| 15kv U cross-arm for Dead End | 80x43x5x8 | 2200 | 4852 |
| 15kv Heavy angle crossarm | 80x43x5x8 | 2500 | 3782 |
| Heavy angle/Tension Tower cross arm | 80x43x5x8 | 2420 | 4308 |
| 33kv U cross arm | 100x50x6x8.5 | 3000 | 4609 |
| 15kv U cross-arm for Transformer Base | 100x48x5.5x8.5 | 2500 | 2477 |

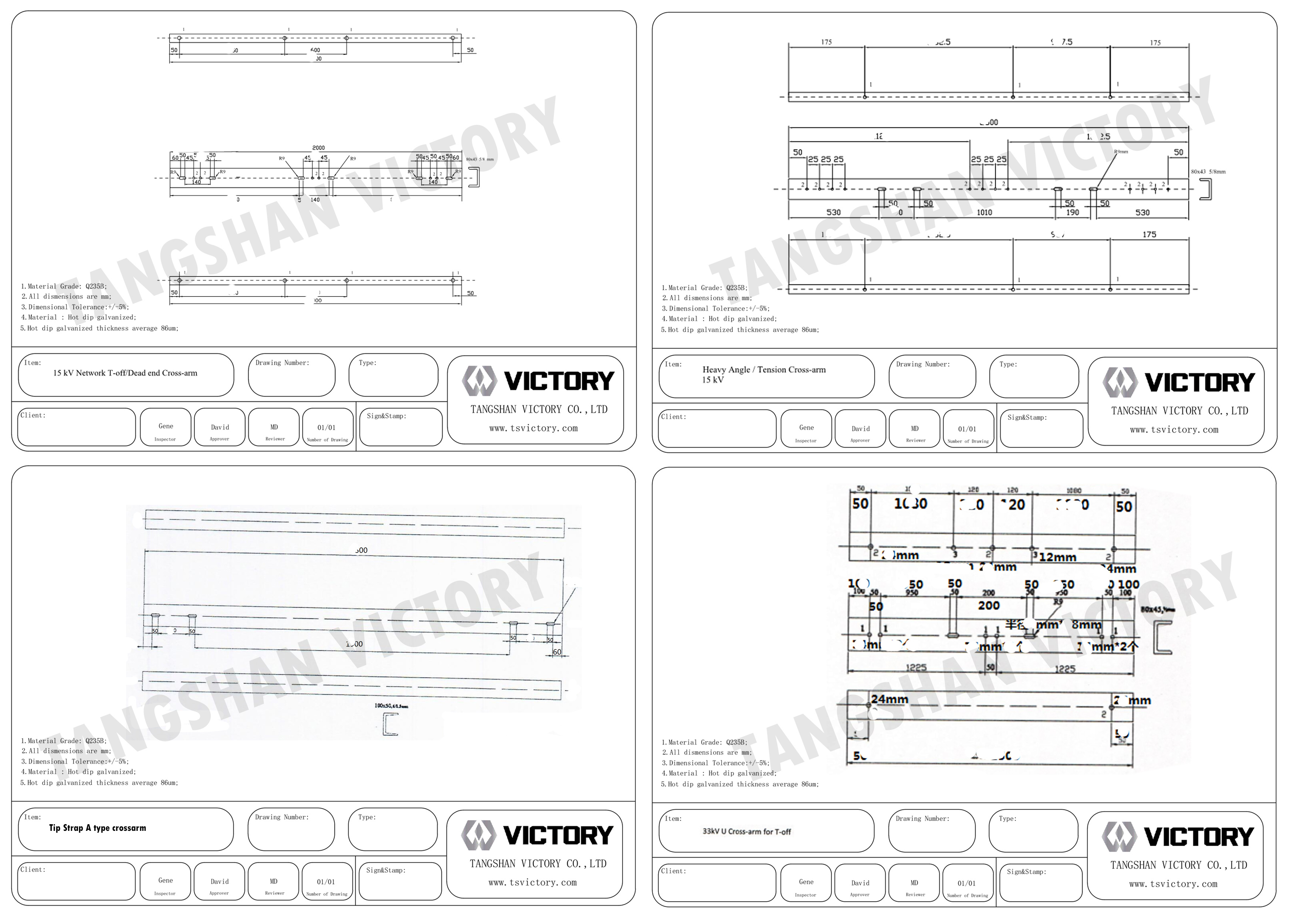

RELATION DRAWINGS:

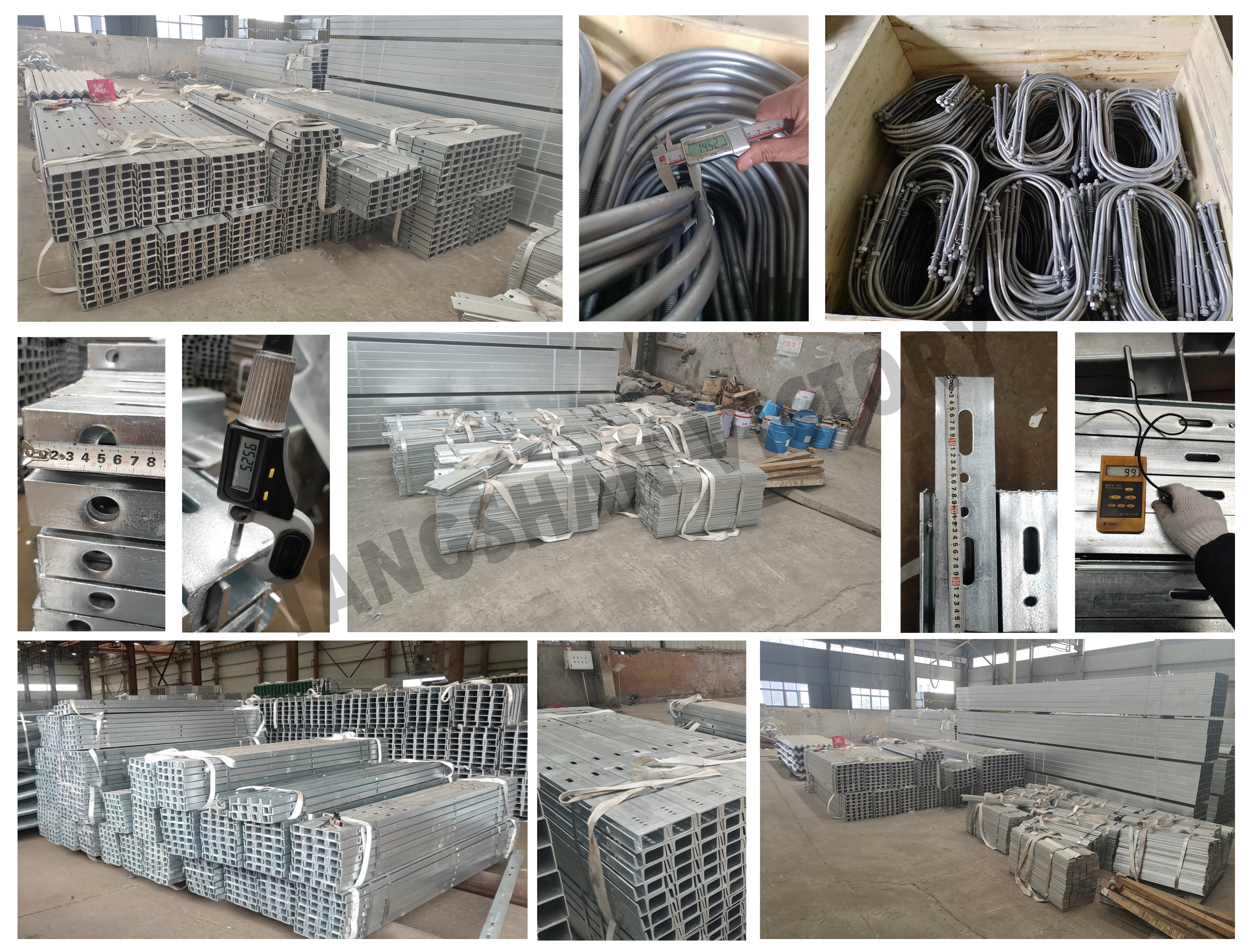

CARGOS PRODUCE:

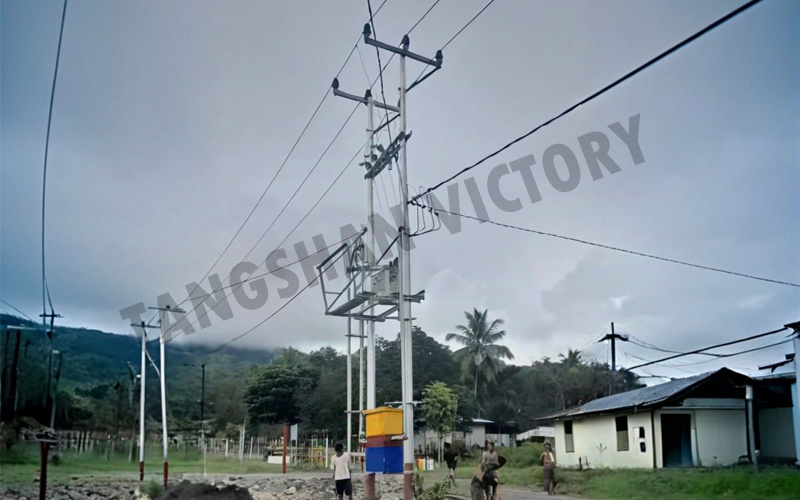

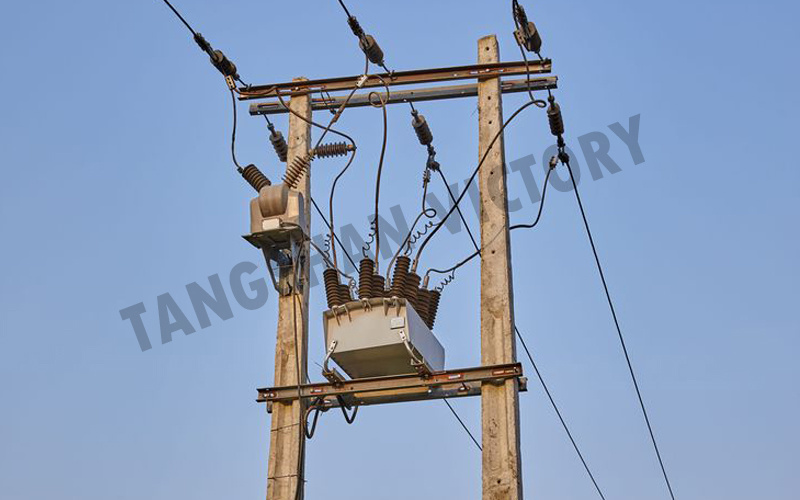

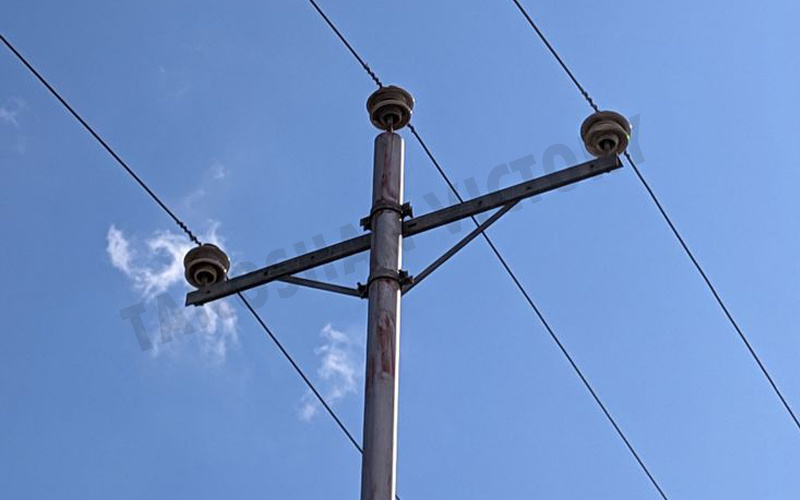

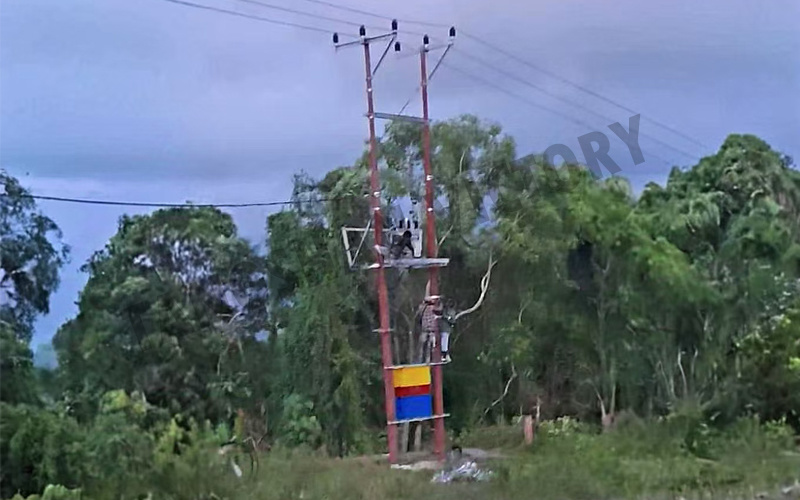

SHIPMENT AND CLIENT FEEDBACK:
Product Photograph
Quality Inspection
Packing & Shipping
